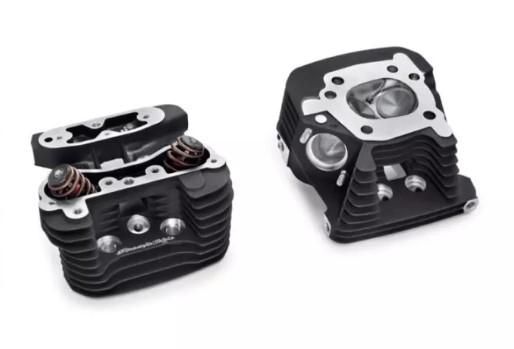

CNC Ported Heads offer a cost-effective approach to upgrading the performance of your motorcycle.

The intake and exhaust ports are meticulously machined for smooth surfaces, improving the flow characteristics of air and fuel in order to provide enhanced performance

But it doesn?t end there, the proven stock valves rest in reshaped valve seats to further improve flow rates

The combustion chambers have been machined for smooth surfaces and feature a blended radius on the bathtub edge to reduce detonation by eliminating hot spots and promoting improved combustion

The head gasket surface has been milled to maintain stock combustion chamber volume (59.9cc), which results in stock compression when used with Original Equipment pistons

Compression can be increased with the installation of Screamin Eagle high-compression pistons

Heads are assembled with Original Equipment valves and high-performance valve springs that support cams with lift up to .585."

All EFI models require ECM calibration (priced separately)

For race application only

Note

Fits Harley-Davidson '07-later XL1200 models (except '98-'03 XL1200S). Requires installation of Perfect Fit Pushrod Kit (-.050) P/N 18424-06.
